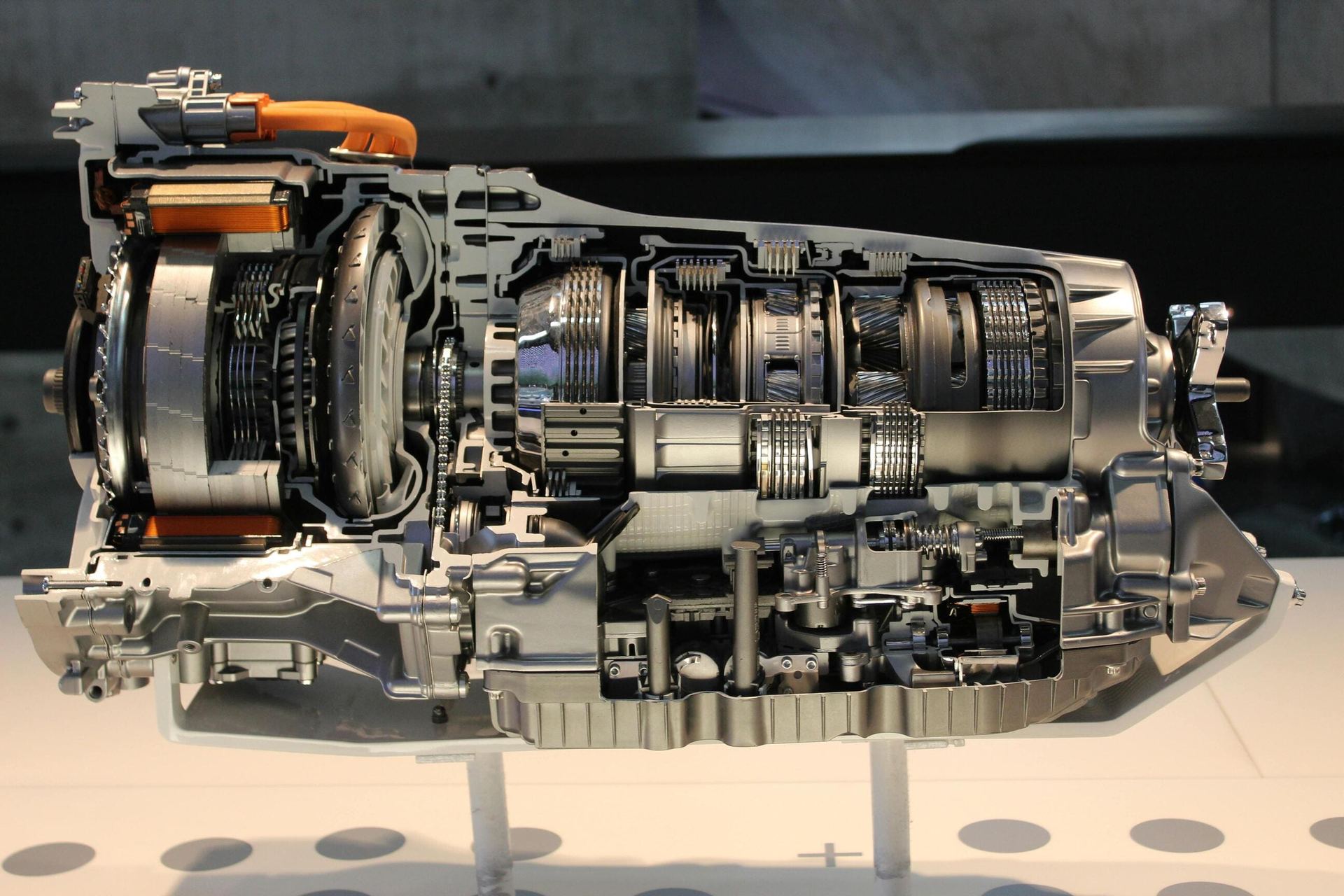

Automotive & Mobility
Vehicle & Powertrain
Hydraulic fittings, brackets, shafts, bushes and aftermarket spares for vehicle builders, braking and hydraulics companies. IATF 16949 partner shops available where the program requires it.
Registered Indian Exporter · Est. 2026
CNC components from India, without the guesswork.
Zenvico Precision exports turned, milled and fabricated metal components from audited Indian workshops. Tolerances, materials, lead times and commercial terms are on this page — so you can qualify us before you ever write an email.
Capabilities
What we supply, in numbers
Every process below runs in audited partner workshops in India's established machining clusters. The ranges shown are what we quote against today — if your part falls outside them, we will say so in the first reply.
HS 8483 · TURNED PARTS01 / TURNING

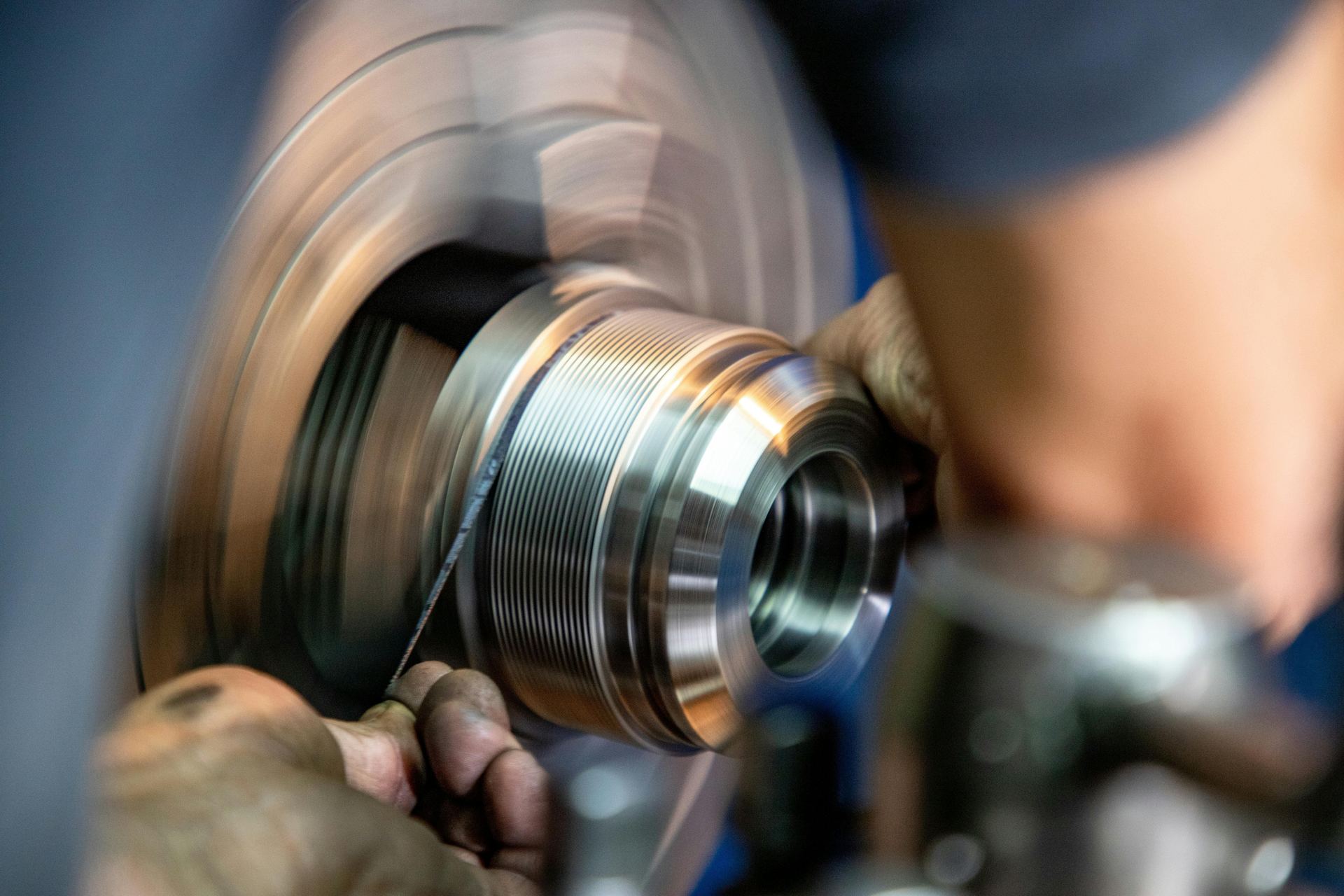

CNC Turning
Shafts, bushings, threaded fittings, pins, glands and hydraulic adaptors.
| Diameter range | Ø 3 mm – 300 mm |
| Max length | 1,000 mm between centres |
| General tolerance | ISO 2768-m / -f |
| Tightest quoted | ±0.01 mm on ground features |
| Surface finish | Ra 0.8 – 3.2 µm as machined |
| Threads | Metric, UNC/UNF, BSP, NPT |
HS 8466 · MILLED PARTS02 / MILLING

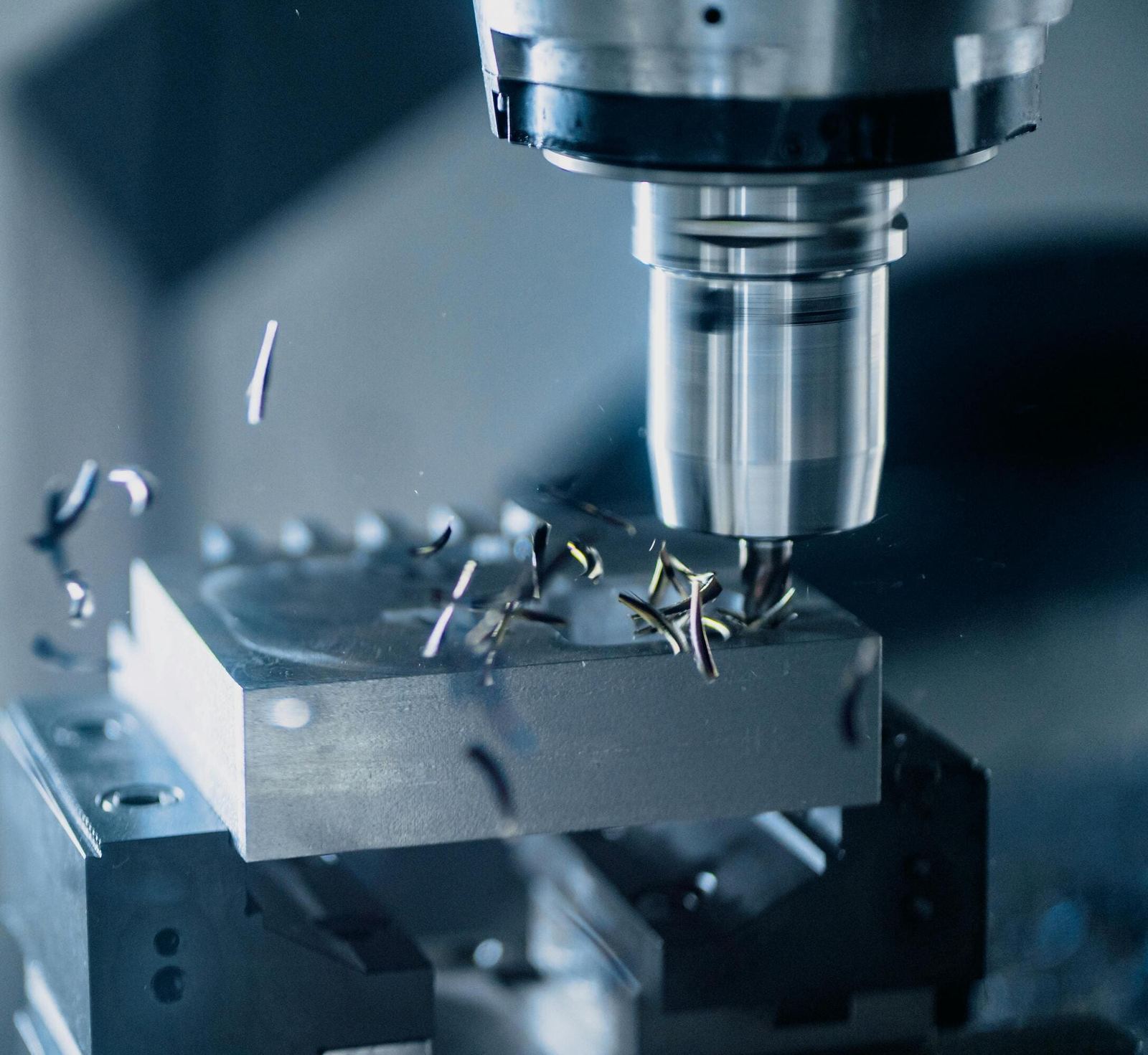

CNC Milling
Brackets, housings, manifolds, base plates and prismatic parts.
| Work envelope | Up to 800 × 500 × 500 mm |
| Axes | 3-axis standard, 4-axis available |
| General tolerance | ISO 2768-m / -f |
| Positional | ±0.02 mm hole-to-hole achievable |
| Secondary ops | Tapping, reaming, counterboring, deburring |
HS 7326 · SHEET METAL03 / SHEET METAL
Sheet Metal Fabrication

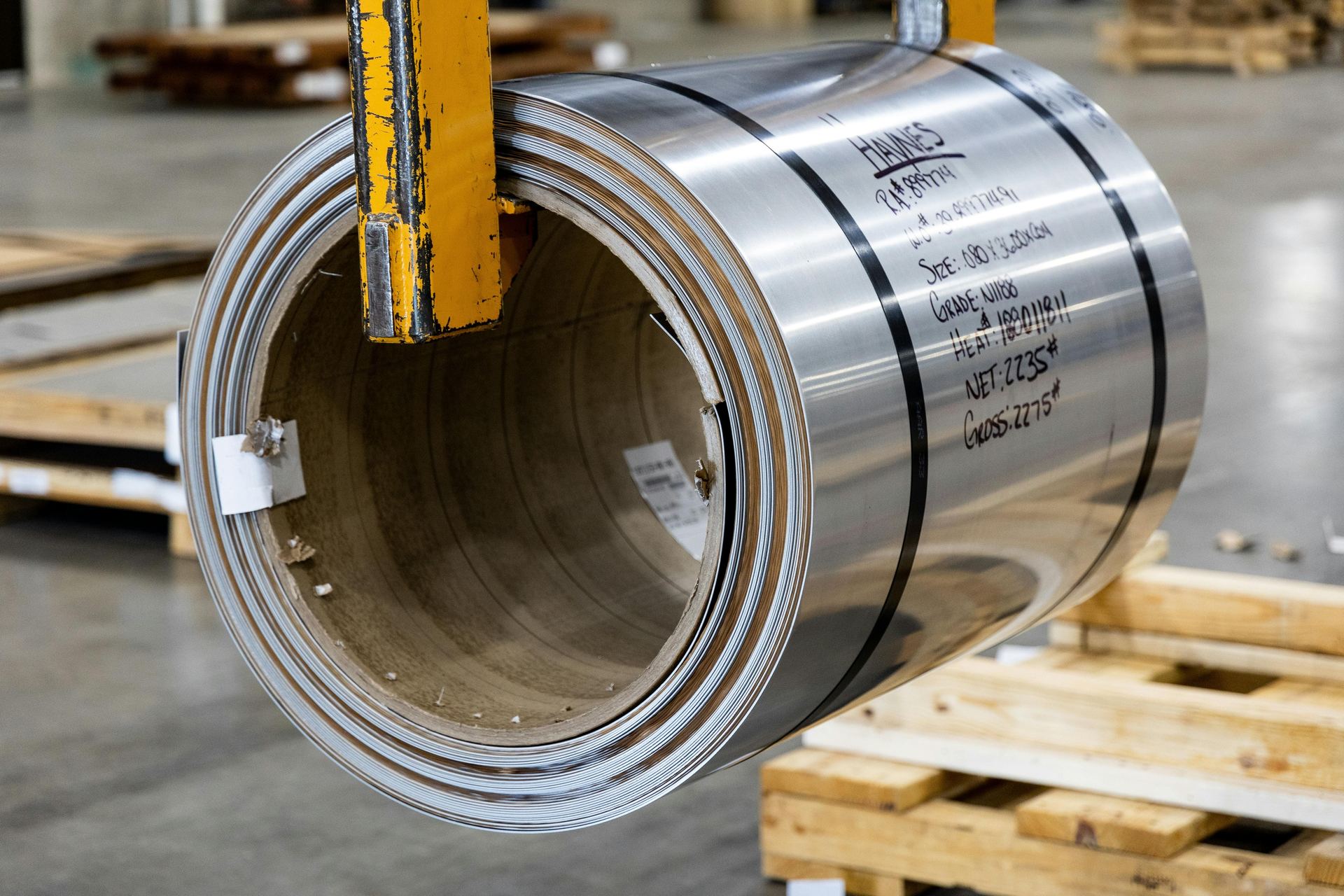

Laser-cut and formed parts, enclosures and guards — heat numbers traced from coil to packing list.
| Thickness | 0.5 – 12 mm |
| Processes | Laser cutting, CNC bending, punching |
| Bend tolerance | ±0.5° typical, ±0.2° on request |
| Traceability | Mill test certificate (EN 10204 3.1) on request |
WELDED ASSEMBLIES04 / ASSEMBLIES

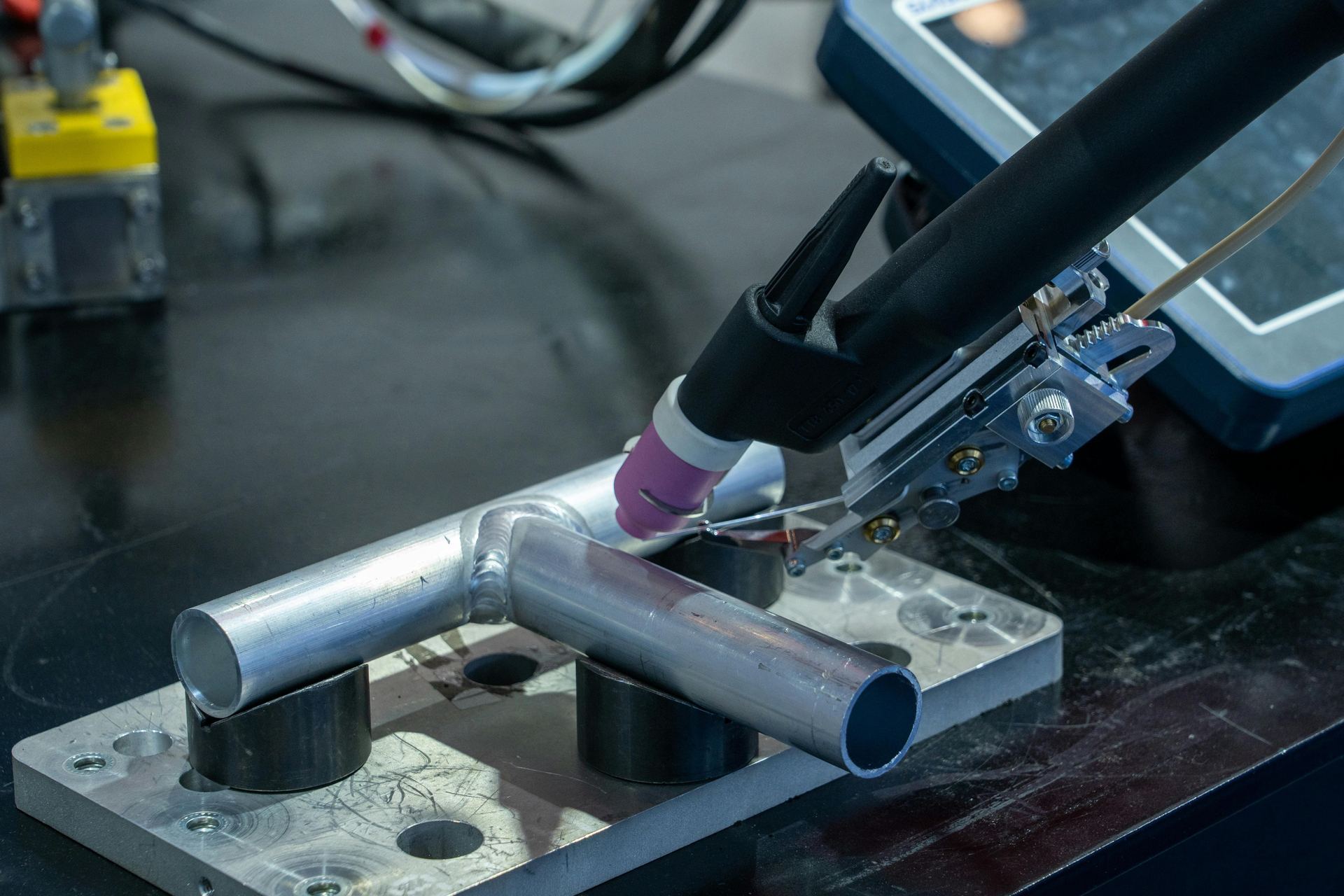

Welded Assemblies
Fixtured weldments combining machined and sheet parts — delivered as one item on one PO.
| Processes | TIG (GTAW), MIG (GMAW) |
| Materials | Carbon steel, stainless, aluminium |
| Fixturing | Jig-controlled for repeat geometry |
| Post-weld | Machining of critical faces after welding |
CASTINGS + MACHINING05 / CASTINGS
Castings, Fully Machined
Sand and investment castings supplied machined to drawing — one supplier instead of a foundry plus a machine shop.
| Casting routes | Sand, shell, investment |
| Materials | CI, SG iron, carbon steel, Al alloys |
| Weight range | 0.1 – 150 kg per piece |
| Deliverable | Machined, inspected, ready to fit |
Materials & Lead Times
Quote against real numbers
Indicative ranges for planning. Exact figures are confirmed in your quotation, against your drawing and quantity.
| Material group | Common grades we machine | Stock form |
|---|---|---|
| Carbon & alloy steel | EN8, EN19, EN24, C45, 16MnCr5, 42CrMo4 | Bar, plate, forging |
| Stainless steel | 303, 304/304L, 316/316L, 410, 17-4 PH | Bar, plate, sheet |
| Aluminium | 6061-T6, 6082-T6, 7075-T6, 2014 | Bar, plate, extrusion |
| Copper alloys | Brass CW614N / CZ121, phosphor bronze, gunmetal | Bar, hollow bar |
| Cast irons | FG260, SG 500/7, SG 450/10 | Casting |
| Engineering plastics | POM (Delrin), Nylon 6, PTFE, UHMW-PE | Bar, plate |
| Order stage | Typical quantity | Typical lead time (ex-works) |
|---|---|---|
| Quotation | — | Within 48 hours of complete RFQ |
| First article / samples | 1 – 10 pcs | 2 – 3 weeks |
| Trial production lot | 50 – 500 pcs | 3 – 5 weeks |
| Recurring production | 500 – 50,000 pcs / year | 4 – 6 weeks per lot, schedulable |
| Sea freight transit | — | UK/EU ≈ 4–5 wks · US ≈ 5–6 wks · Gulf ≈ 1–2 wks |
| Air freight transit | — | 5 – 8 days worldwide, quoted on request |
Need a grade or quantity outside these ranges? Ask anyway — if we can't do it well, we'll tell you in one email instead of wasting your month.
Surface Finishing
Finished, not just machined
Coating and plating arranged within the same order, with finish thickness stated on the inspection report.

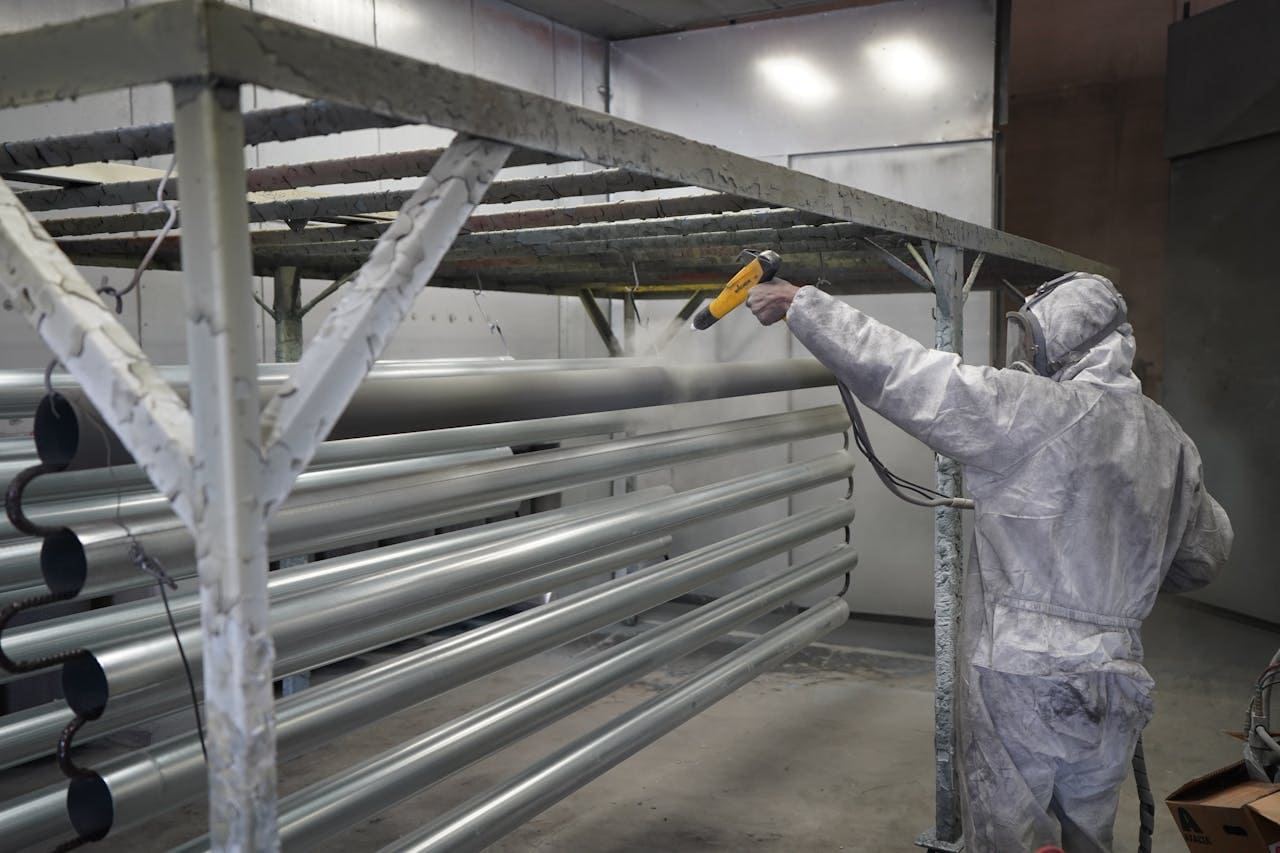

Powder Coating
RAL colour of your choice · 60–120 µm typical film build

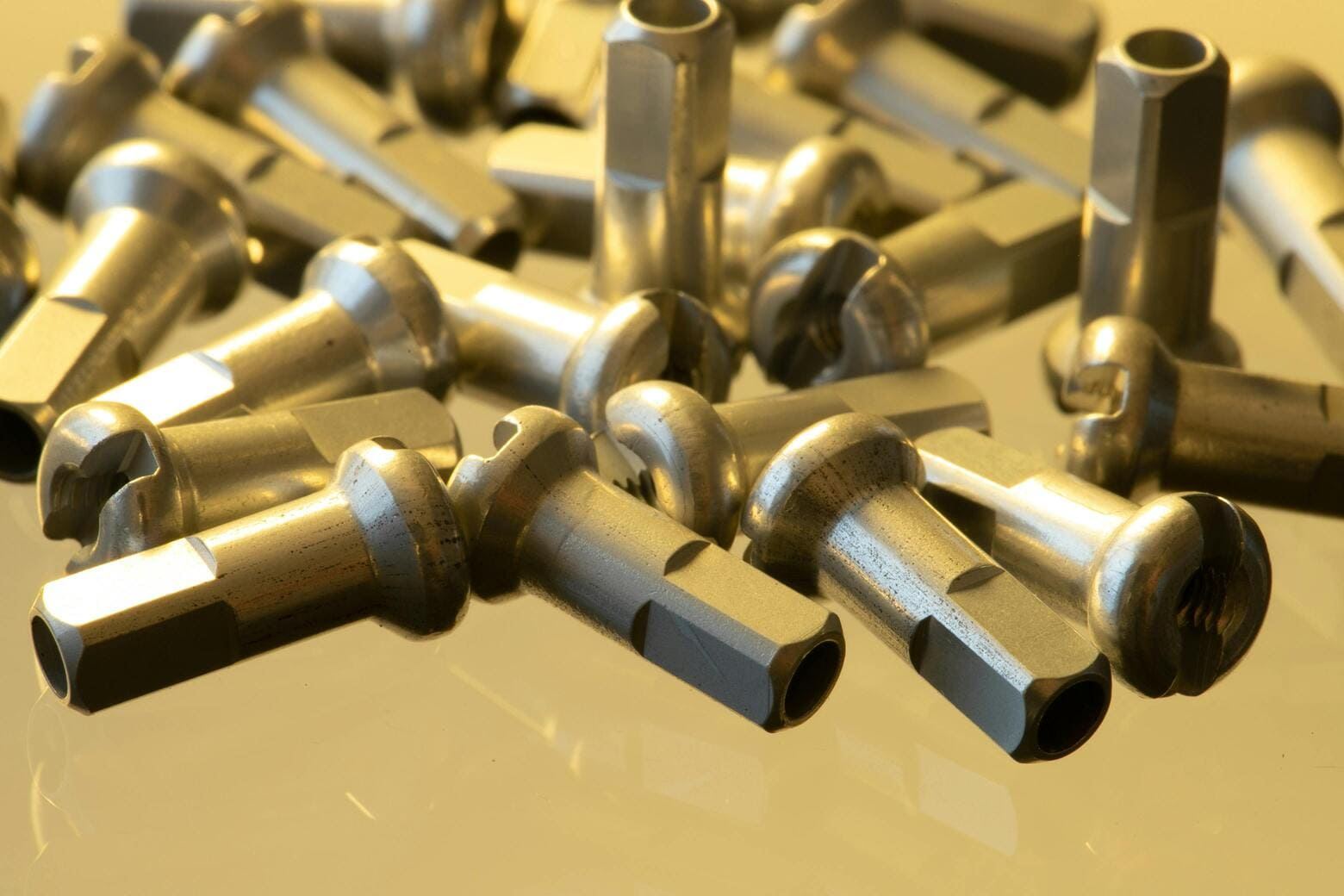

Anodizing
Type II clear & colour · hard anodize on request

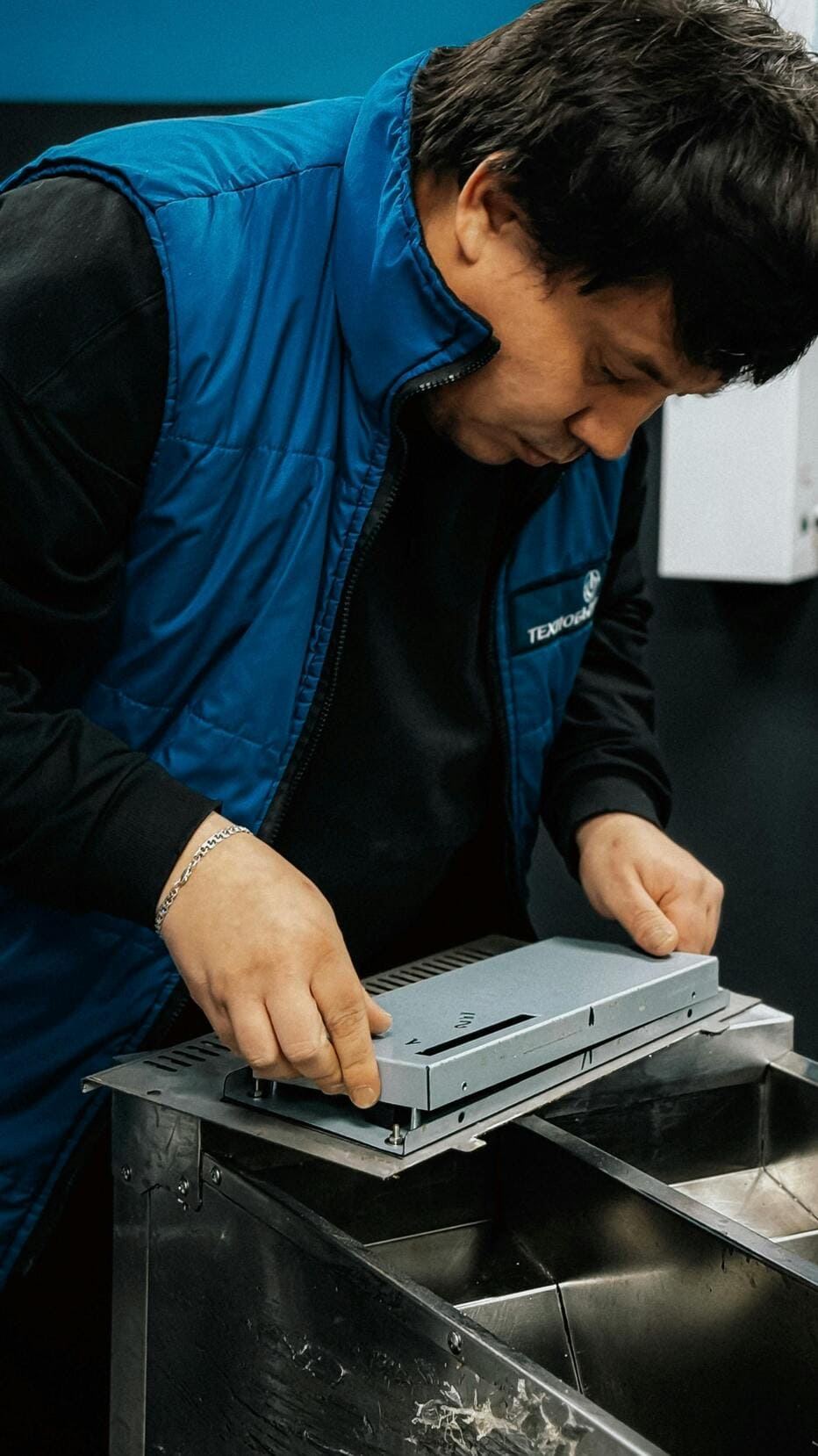

Plating & Treatment
Zinc (Cr3), nickel, phosphating, passivation
Industries
Where our parts end up

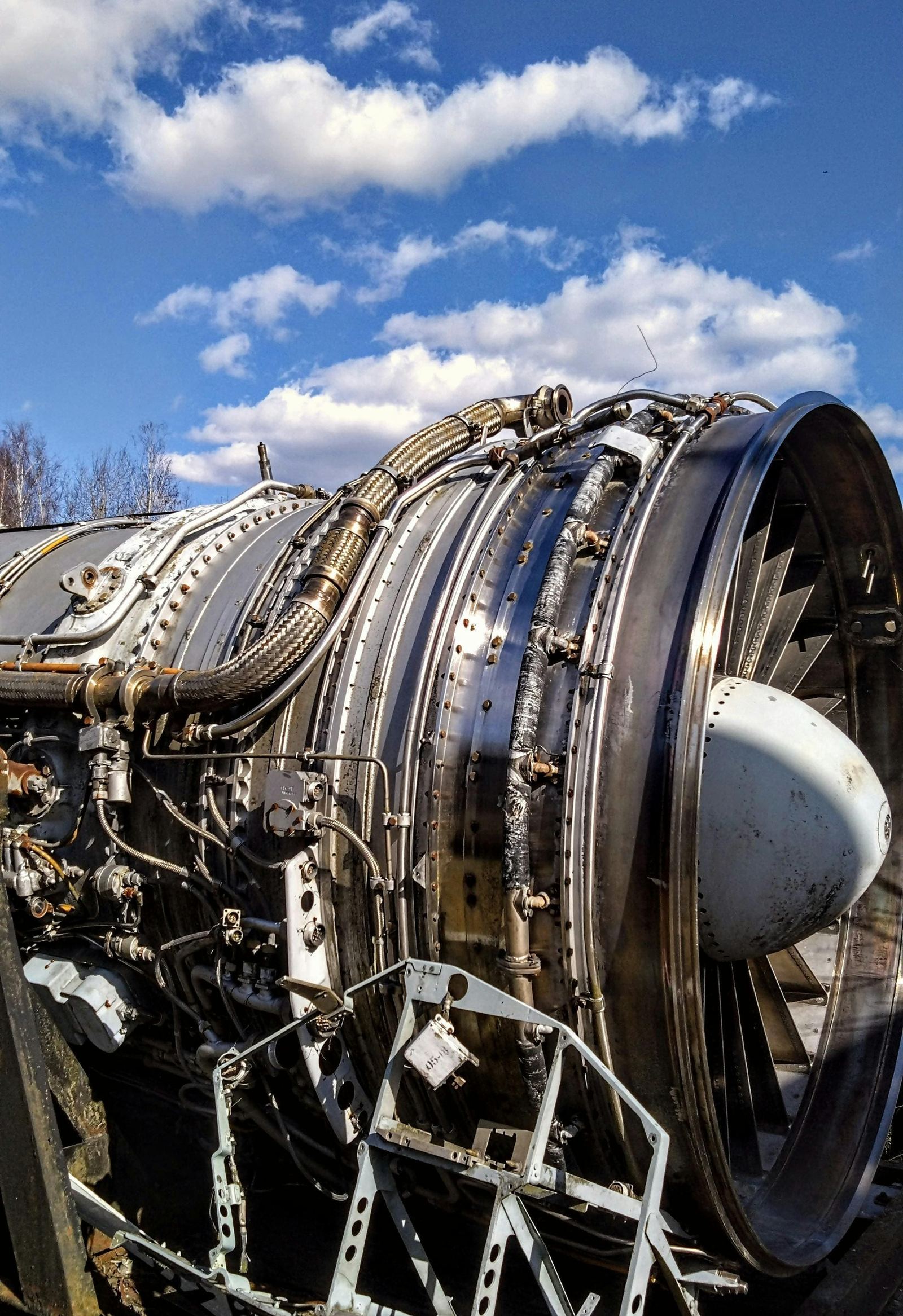

Aerospace & High-Spec
Aerospace-Grade Supply
AS9100D and NADCAP capability through certified partners, for parts where material traceability and process control are contractual, not optional.
Also supplying: pumps & valves · industrial machinery · agricultural equipment · construction attachments · rail · general engineering. If your part is metal and has a drawing, send it.
Commercial Terms
The part most websites hide
You shouldn't need three calls to learn how we trade. Here it is.
Ordering
- No MOQ on first articles — trial lots from 1 piece
- Quotation validity: 30 days standard
- Currencies: USD, EUR, GBP, AED
- NDA: signed before drawing review on request
Payment
- Samples / trial lots: advance via bank transfer
- Production orders: part advance + balance against shipping documents
- Letter of Credit accepted for larger recurring contracts
- Banking: Indian scheduled bank, SWIFT-enabled
Shipping & Incoterms
- Quoted as: EXW, FOB Indian port, CIF/CFR, or DAP your dock
- Modes: sea (LCL/FCL), air, courier for samples
- Packing: VCI wrap for ferrous parts, export-grade cartons/crates, ISPM-15 pallets
- Insurance: marine cover arranged for CIF/DAP shipments
Documentation supplied
- Every shipment: commercial invoice, packing list, certificate of origin
- Quality: dimensional inspection report; FAI report on new parts
- Material: mill test certificates (EN 10204 3.1) on request
- On request: certificate of conformity, finish thickness report
Quality System
Five gates. Every order.
GATE 1
Drawing review
Tolerances, materials and finishes verified with the executing shop before we quote.
GATE 2
Shop qualification
Orders placed only with audited, ISO 9001-certified workshops matched to the part class.
GATE 3
First-article check
FAI report with measured dimensions sent for your approval before the production run.
GATE 4
Pre-shipment inspection
Parts inspected against the drawing before packing. Our shops are paid only for approved parts.
GATE 5
Export & documents
Invoice, packing list, COO, certificates and freight handled end to end.
Every order that ships carries our name on the invoice, so we treat each one the same way: we select the right workshop for the part, run the inspections ourselves, handle the paperwork, and stand behind the promise that what lands at your dock matches the drawing you sent.
If your part needs a process we can't control properly, I will tell you in the first email and, where I can, point you somewhere that can. That costs me an order occasionally. It's also why the second order comes back.
— MukeshZenvico Precision · replies personally to every RFQ
Common Questions
Asked by buyers like you
How does your production model work?
Zenvico Precision is an export supply company. Production runs across our network of audited, ISO 9001-certified workshops, while we hold the quality liability, run the inspections, and handle export end to end. You get one accountable counterparty instead of managing an Indian shop floor remotely — and your quotation always names the certification status of the workshop that will make your part.
How do I know the parts will match the drawing?
Three mechanisms. First, a first-article inspection report with measured dimensions goes to you for approval before production. Second, pre-shipment inspection against the drawing before anything is packed. Third — and this is the part that aligns incentives — our workshops are paid only for parts that pass inspection. Rejection risk sits with us, not you.
What happens if a shipment arrives with defects?
Notify us with photos and the inspection report reference within 30 days of receipt. Confirmed nonconforming parts are replaced at our cost in the next shipment, or credited — your choice. Our supplier contracts mirror your specification back-to-back, so we don't have to win an argument with a workshop before making you whole.
Can you handle small trial orders?
Yes — that's how almost every customer starts. There is no minimum on first articles or trial lots. Samples typically ship by courier in 2–3 weeks. We'd rather earn the production order with a small lot than ask you to gamble on a container.
Which countries do you ship to?
Anywhere with a port or an airport. Active focus: UK, EU, US, the Middle East and Asia-Pacific including Australia and New Zealand. We quote EXW through DAP, so you choose how much of the logistics you want to own.
How do you price compared to instant-quote platforms?
On one-off prototypes, platforms are often cheaper and faster — use them. Our lane is recurring volumes and parts their algorithms misprice: castings plus machining, weldments, multi-process parts, legacy spares. There, India's cost base plus a managed quality process usually lands meaningfully below Western shop rates with documentation those platforms don't provide.
What do you need from me to quote?
Drawing (PDF minimum; STEP/DXF appreciated), material grade, quantity — ideally annual usage too — finish, and delivery destination. With that complete, you get a quotation within 48 hours. Missing something? Send what you have; we'll reply with exactly what's needed rather than a form letter.
Request for Quotation
Send a drawing.
Get a real answer.
Within 48 hours you'll have either a quotation or a precise list of what's missing to quote — written by Mukesh, not generated by a portal.
RFQs & enquiries
mukesh@precision.zenvicoglobal.com
NDA before drawing review, on request
No minimum on trial lots
Quotes in USD · EUR · GBP · AED
Include for a 48-hour quotation
- Drawing — PDF, STEP or DXF
- Material grade (or "suggest equivalent")
- Quantity now + expected annual usage
- Surface finish / coating requirement
- Delivery destination & preferred Incoterm
- Target date, if you have one
